Home >> Products >> WS-130 Rough Terrain Stacker

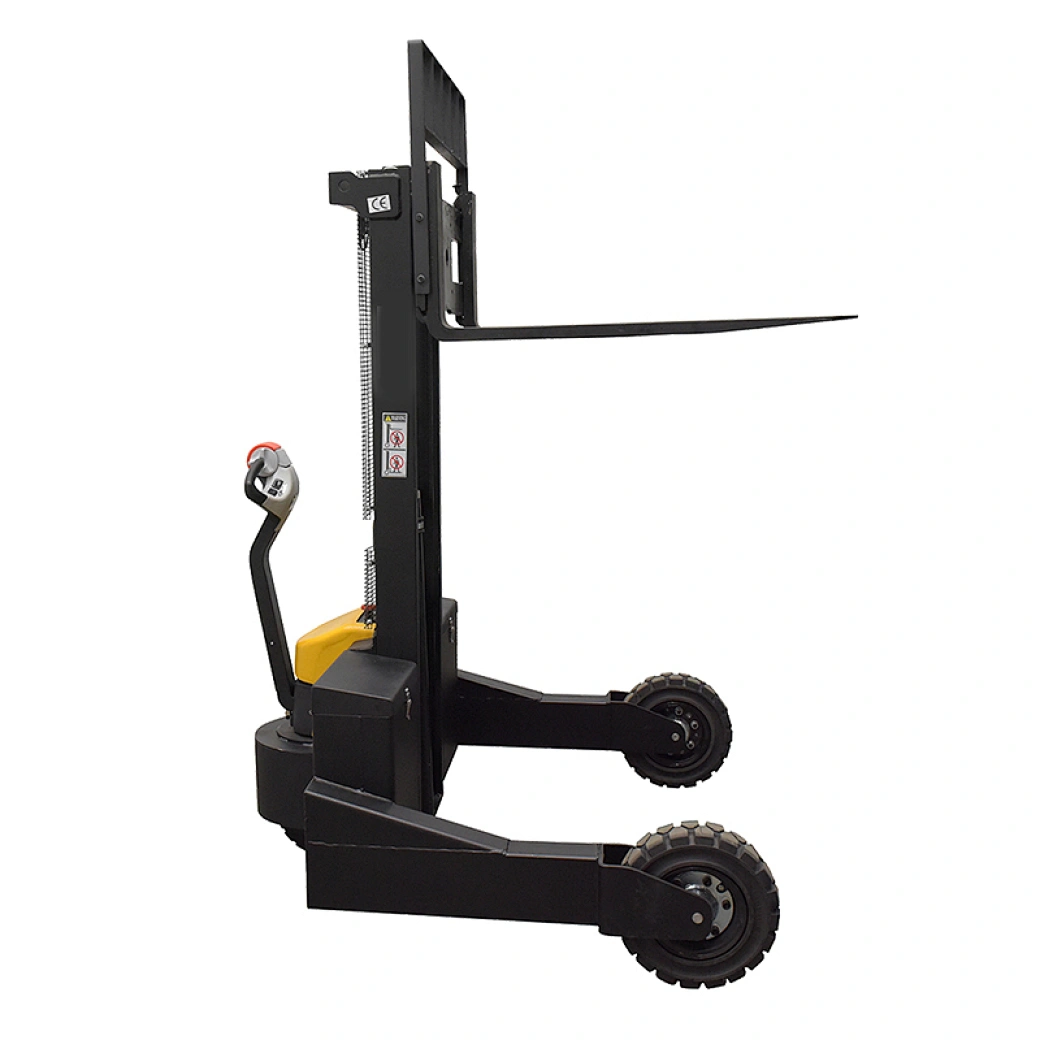

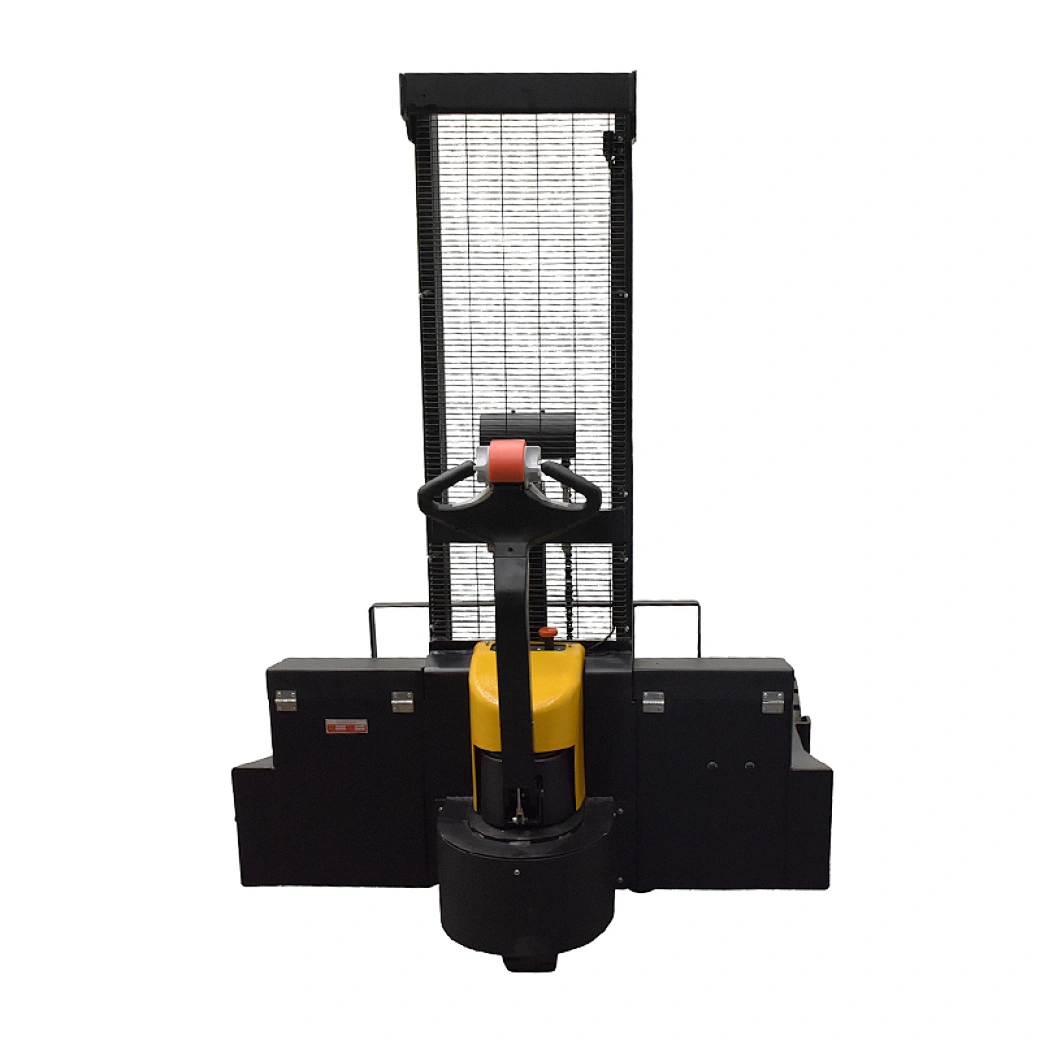

Name：WS-130 Rough Terrain Stacker
Model：WS-130
Product Introduction：This pallet stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets.

Name:Rough Terrain Stacker

Features of Rough Terrain Stacker

This rough terrain stacker can travel inclines of up to 1500kg. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels.

We can also offer special attachments such as crane jib, boom, drum clamp, load protectors, extended forks and sliding hook.

The Rough Terrain Stacker is also available with raised fork heights of 3000mm. Please contact us for more information.

Parameter	WS-130/16RT-DC	WS-130/20RT-DC	WS-130/25RT-DC	WS-130/30RT-DC	Unit	Notes
Model	WS-130/16RT-DC	WS-130/20RT-DC	WS-130/25RT-DC	WS-130/30RT-DC	-
Driving Motor	1200W	/	/	/	W	DC motor
Lifting Motor	2000W	/	/	/	W
Controller	2207	/	/	/	-
Drive Wheel	Ø300 × 125mm	/	/	/	mm
Load Wheel	Ø406 × 110mm	/	/	/	mm	Solid rubber tire
Inner Width of Straddle Leg	1270 / 1070	/	/	/	mm	Dual options
Mast	103	/	/	/	-	Mast type
Load Capacity	1300	/	/	/	kg
Lifting Height	1600	2000	2500	3000	mm	Key variant difference
Battery	2 × 12V/70Ah	/	/	/	-
Charger	24V/10A	/	/	/	-
