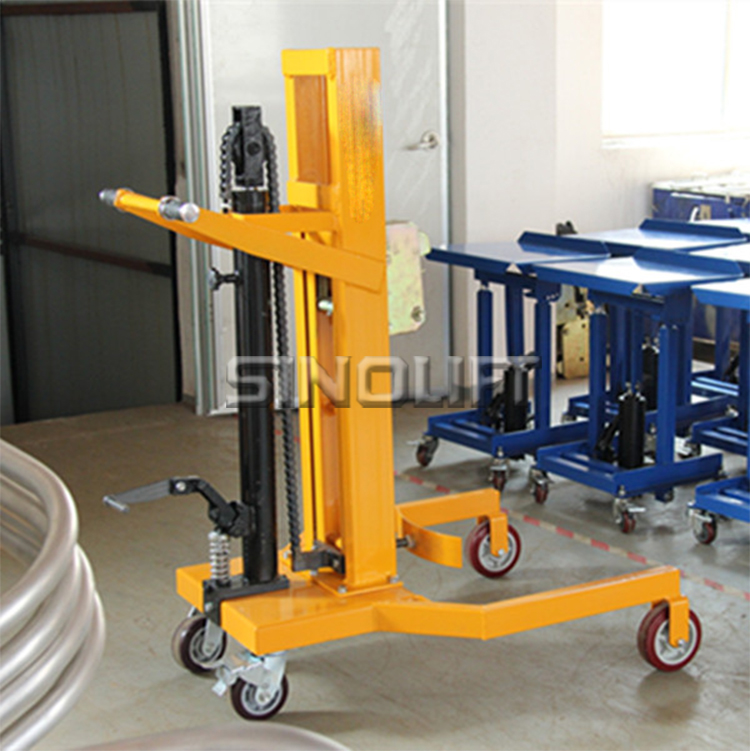

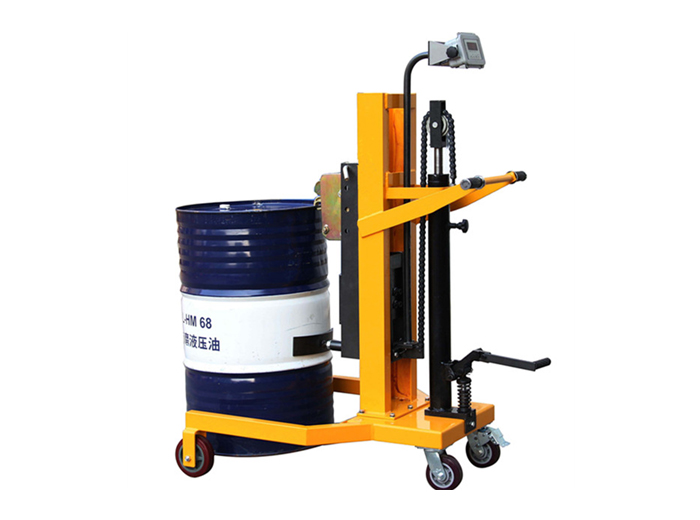

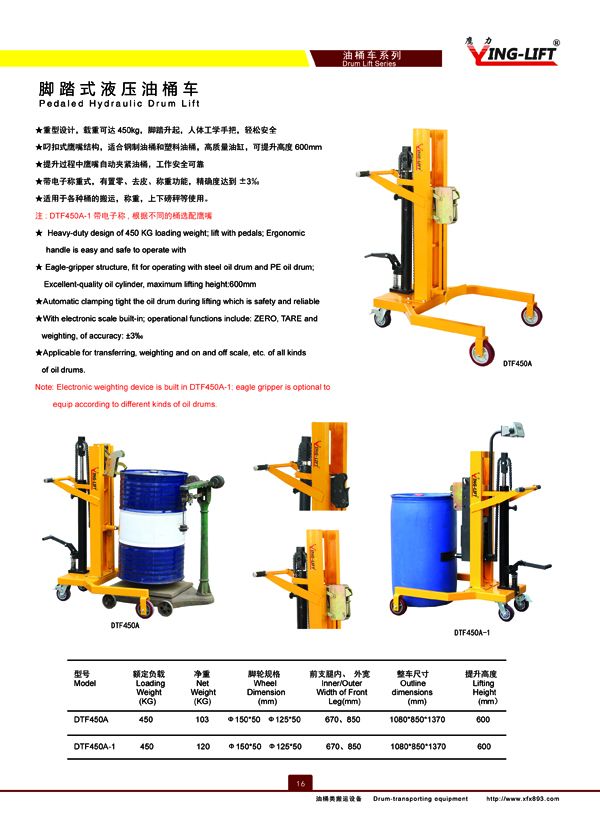

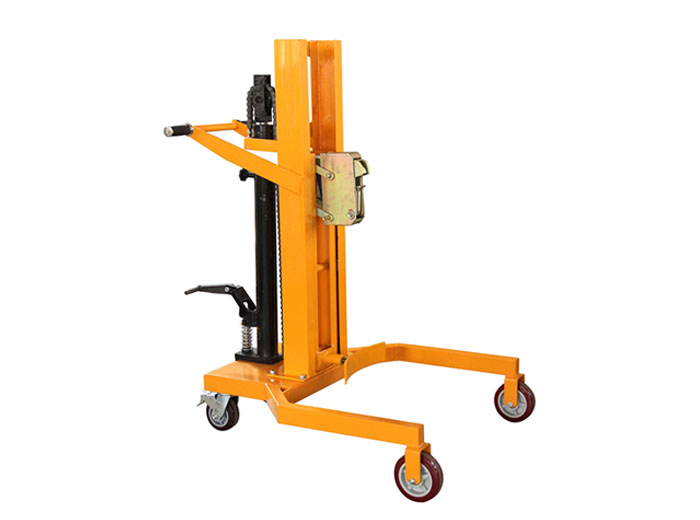

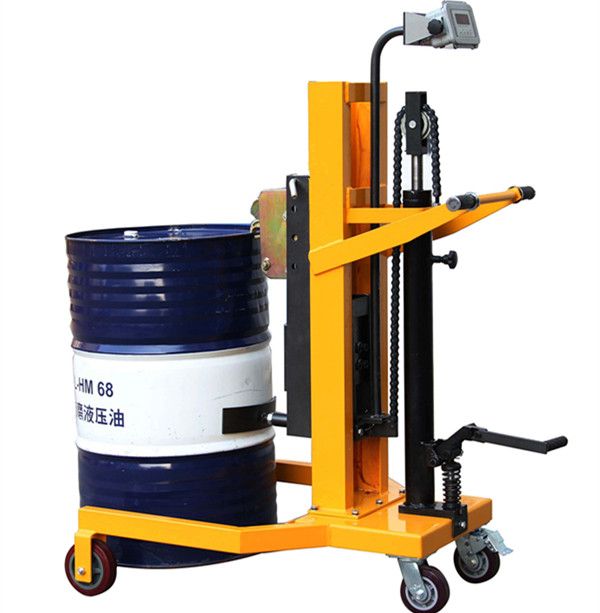

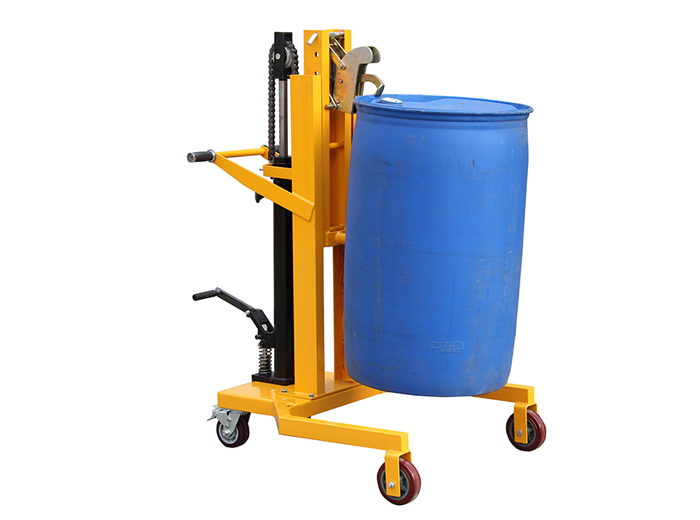

Name:DTF450A-1  Pedal Hydraulic Drum Lift
Model:DTF450A-1
Product Introduction:Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:600mm Automatic clamping tight the oil drum during lifting which is safety and reliable With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰ Applicable for transferring, weighting and on and off scale, etc. of all kinds of oil drums. Note: Electronic weighting device is built in DTF450A-1; eagle gripper is optional to equip according to different kinds of oil drums.

Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with

Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:600mm

Automatic clamping tight the oil drum during lifting which is safety and reliable

With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Applicable for transferring, weighting and on and off scale, etc. of all kinds of oil drums.

Note: Electronic weighting device is built in DTF450A-1; eagle gripper is optional to equip according to different kinds of oil drums.

Model DTF450A-1
Loading Weight kg 450
Net Weight kg 120
Wheel Dimension mm 150*50/125*50
Inner/Outer Width of Front Supporting Leg mm 670/850
Outline Dimension mm 1080*850*1370
Lifting Height mm 600
