DTF450A Pedal Hydraulic Drum Lift

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：DTF450A Pedal Hydraulic Drum Lift
Model：DTF450A

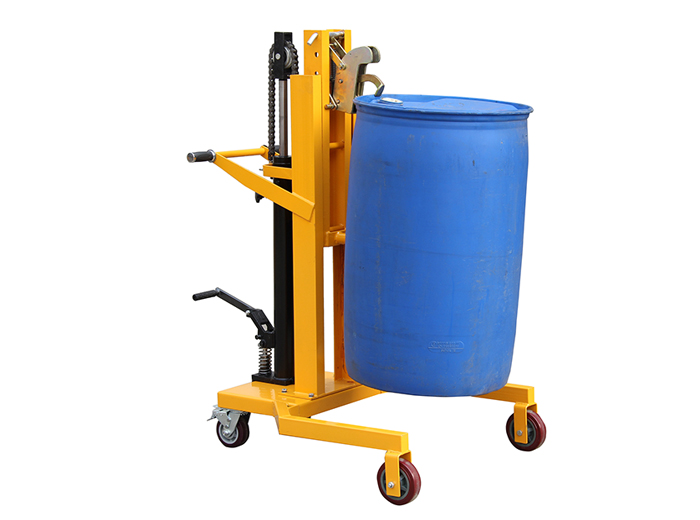

Product Introduction：Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:600mm Automatic clamping tight the oil drum during lifting which is safety and reliable Applicable for transferring, weighting and on and off scale, etc. of all kinds of oil drums.

Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with

Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:600mm

Automatic clamping tight the oil drum during lifting which is safety and reliable

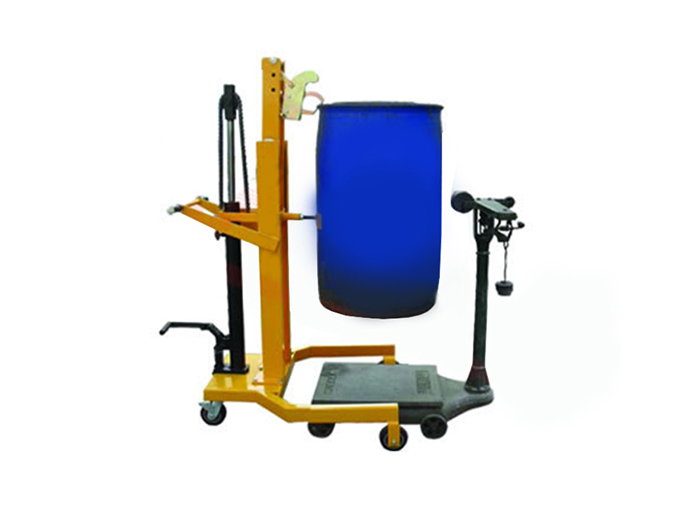

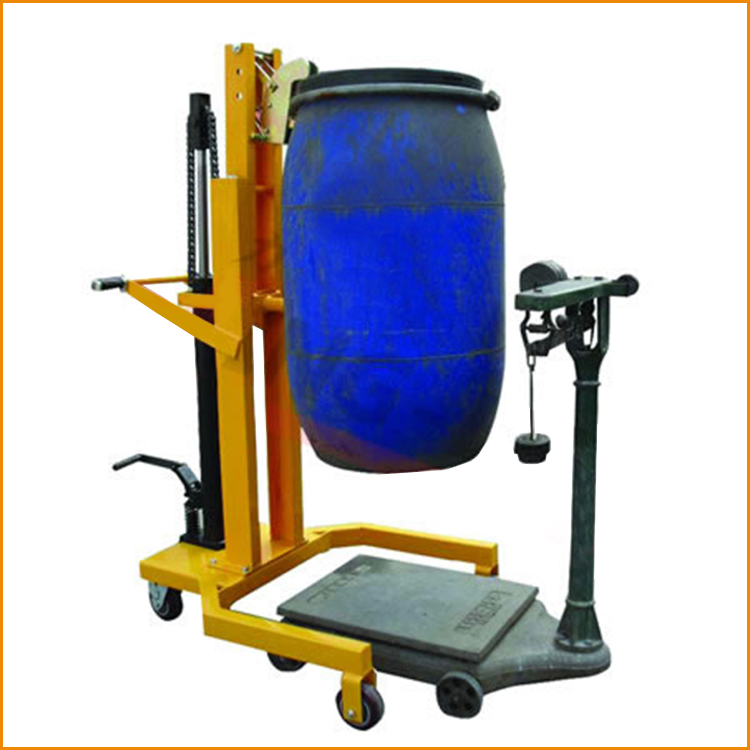

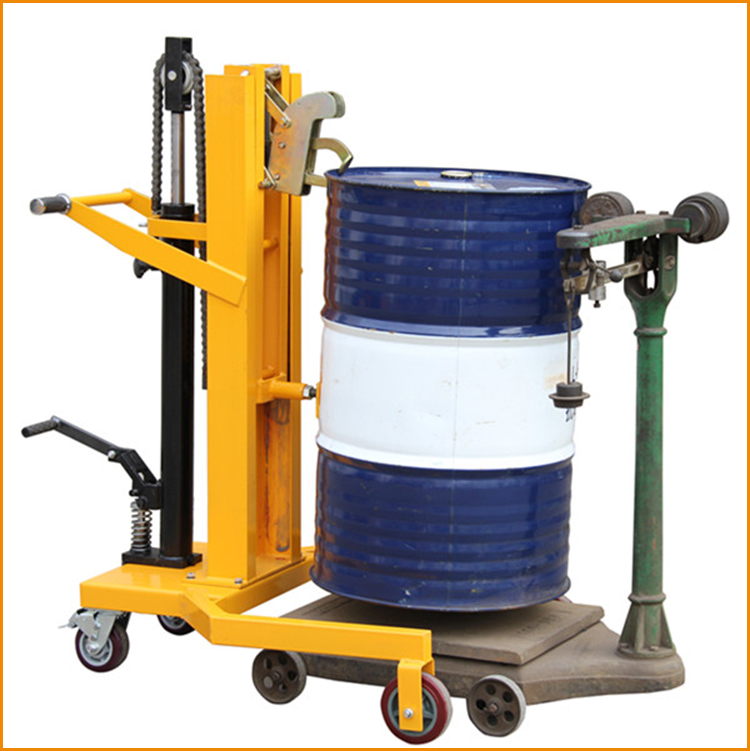

With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Applicable for transferring, weighting and on and off scale, etc. of all kinds of oil drums.

Model	DTF450A
Loading Weight	kg	450
Net Weight	kg	103
Wheel Dimension	mm	15050/12550
Inner/Outer Width of Front Supporting Leg	mm	670/850
Outline Dimension	mm	10808501370
Lifting Height	mm	600
