Home >> Products >> DTF450C-1 Pedal Hydraulic Drum Lift with scale

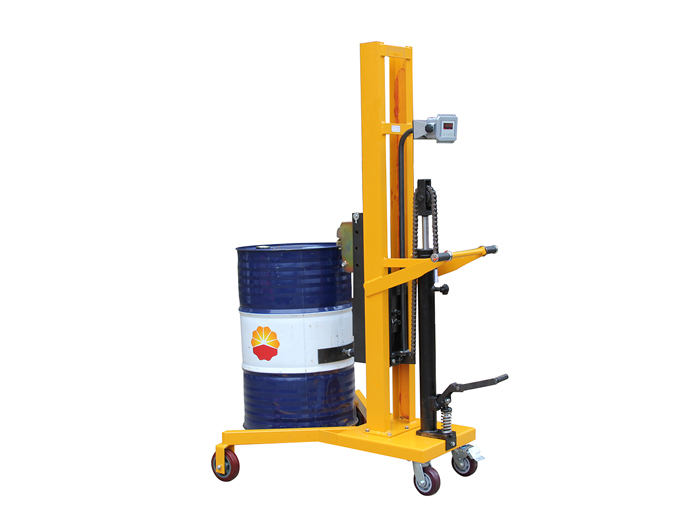

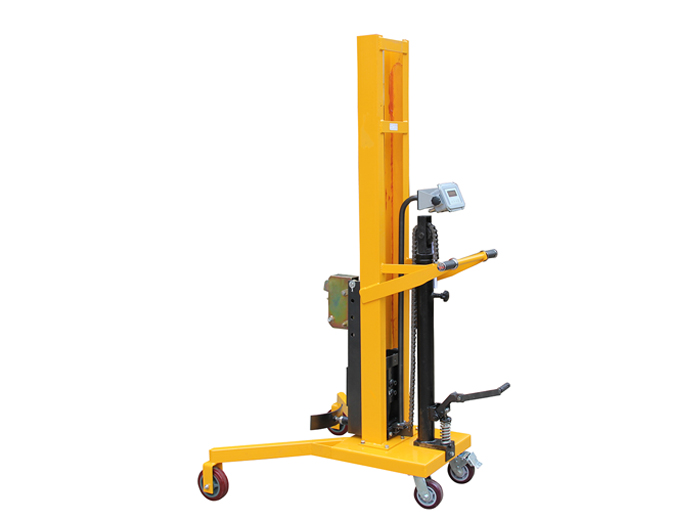

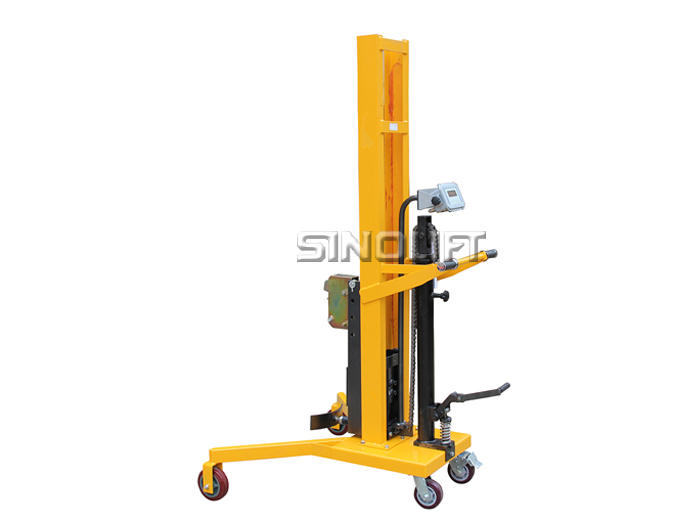

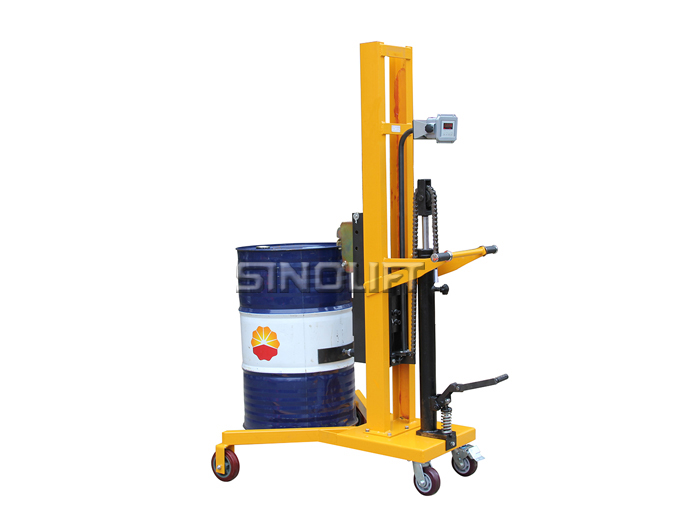

Name：DTF450C-1 Pedal Hydraulic Drum Lift with scale
Model：DTF450C-1
Product Introduction：Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm Automatic clamping tight the oil drum during lifting which is safety and reliable Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰ Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums. Note: Electronic weighting device is built in DTF450C-1; eagle gripper is optional to equip

Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm
Automatic clamping tight the oil drum during lifting which is safety and reliable
Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet

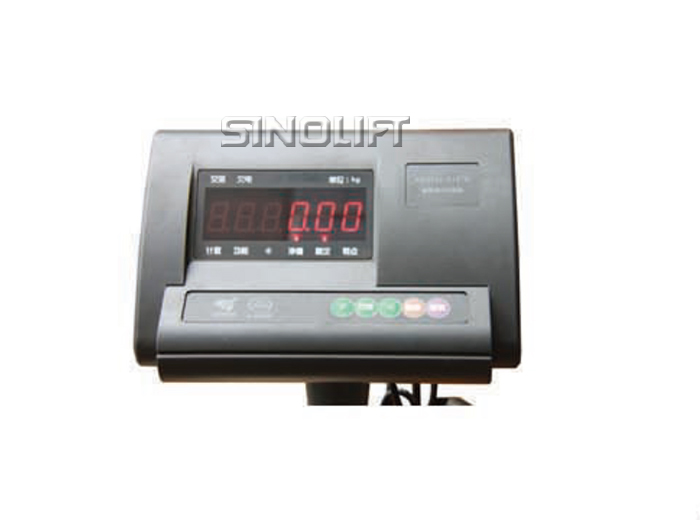

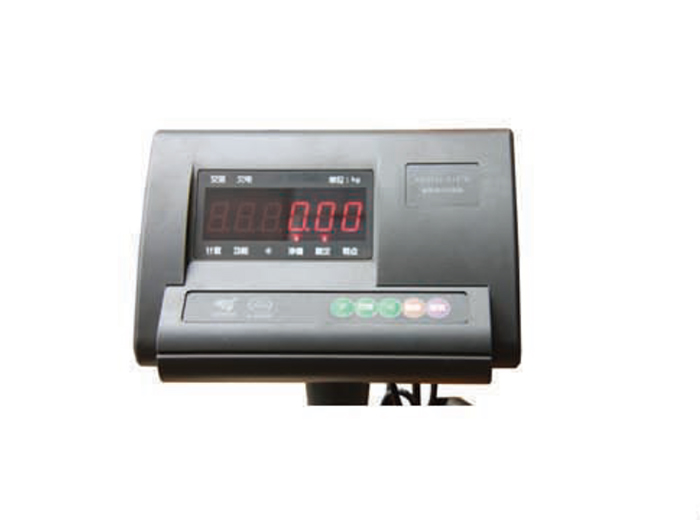

With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums.
Note: Electronic weighting device is built in DTF450C-1; eagle gripper is optional to equip

Model	DTF450C-1
Loading Weight	Kg	450
Net Weight	Kg	135
Wheel Dimension	Mm	15050/12550
Inner Width of Front Leg	Mm	920
Outer Width of Front Leg	Mm	1140
Outline Dimension	Mm	11409501870
Lifting Height	Mm	1100
