Home >> Products >> 1.5 Ton Electric Forklift Truck (CPD15J)

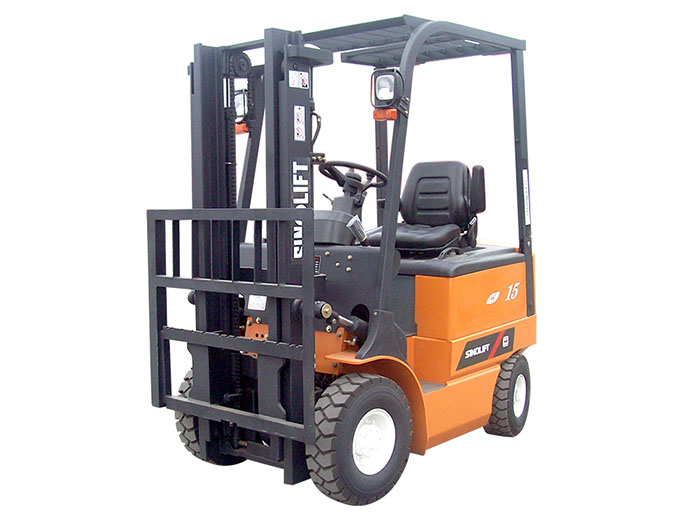

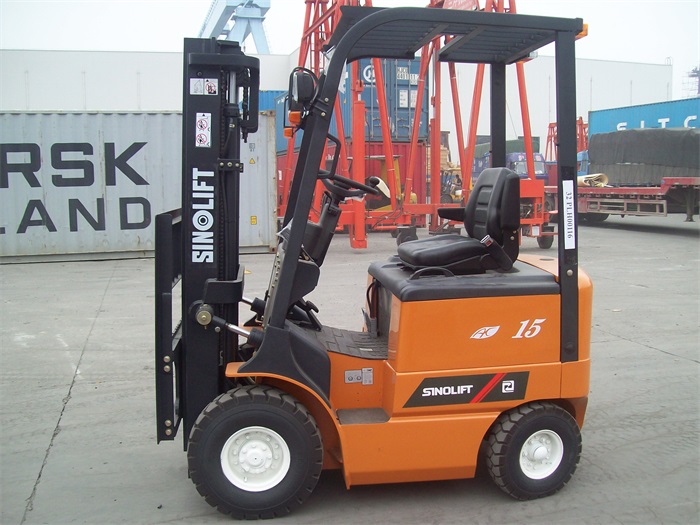

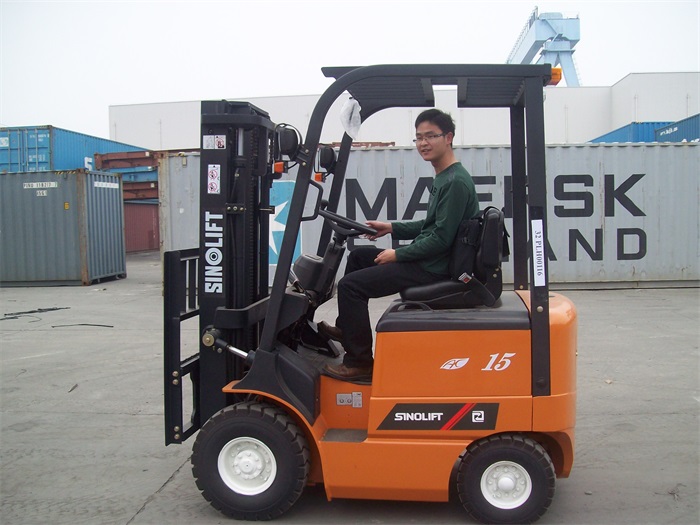

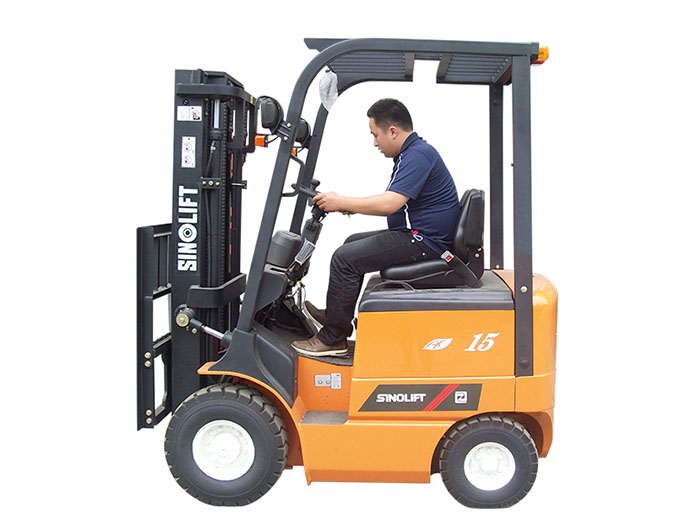

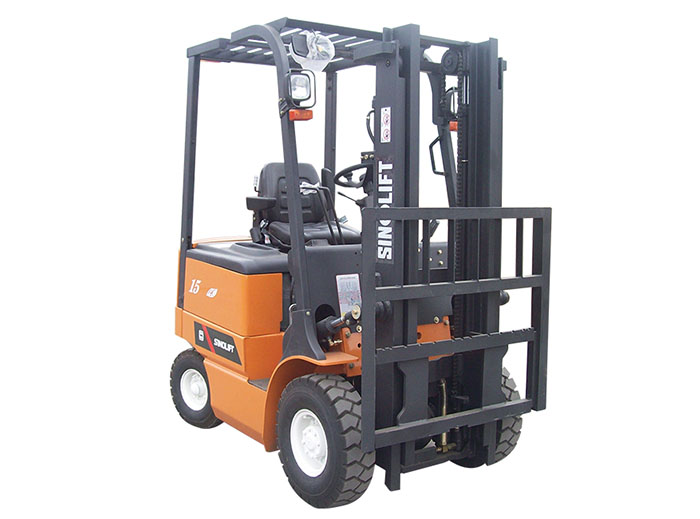

Name：1.5 Ton Electric Forklift Truck (CPD15J)
Model：CPD15J
Product Introduction：Arc streamline body, beautiful, wide visual view, low center of gravity, safety and high reliability. We offer 1.5 Ton electric forklifts with lifting motor. It is arranged in the side of the frame so that it is easy for maintenance and service.

1. Arc streamline body, beautiful, wide visual view, low center of gravity, safety and high reliability.

2. Comparing with DC motors, the AC motors provide operator with more smooth, sensitive and quicker response of operation. No more maintenance for AC motors, which can extend the service life of the motors.

3. Electric control system is fitted inside the balance weight, good heat conduction efficiency, portable opening of back cover, easy to maintenance and service.

4. Fully imported dual pedal accelerator, small and flexible steering wheel, big capacity battery and rubber handle.

5. The lifting motor is arranged in side of the frame, easy to maintenance and service.

6. Adjustable driver's parts can meet requirement of the human body engineering, low noise, no pollution and environmental protection.

General	Manufacturer				SINOLIFT J Series 1.5T Battery Forklift Specifications
	Model					CPD15J
	Power type					Battery
	Rated capacity				kg	1500
	Load center				mm	500
Dimensions	Lift height H				mm	3000
	Free lift E				mm	162
	Fork size N×U×L				mm	920×120×40
	Fork outside spread (Min./Max.)				mm	200/968
	Mast tilt angle (forward/backward) α / β				deg	6/12
	Front ovehang A2				mm	429
	Overall dimensions	Length to face of fork A1			mm	2056
		Overall width B1			mm	1090
		Mast lowered height H1			mm	1995
		Mast extended height H3			mm	4042
		Overhead guard height H2			mm	2162
	Turning radius R				mm	1820
	Min. right angle aisle width X				mm	1810
	Min. right angle stacking aisle width RASA				mm	3370
Performance	Travel speed (no load / full load)				km/h	15/13
	Lifting speed (no load / full load)				mm/sec	400/300
	Max. pull force (full load)				KN	6.5
	Services weight				kg	3120
	Max. gradebility				%	15
Wheel & Tire	Tyre			Front		6.50-10-10PR
				Rear		5.00-8-8PR
	Tread			Ront B2	mm	890
				Rear B3	mm	920
	Wheelbase A3				mm	1250
	Ground clearance (no load / full load)			Mast M	mm	110/95
				Fram F		105/95
Power & Control	Battery		Model			D-440B
			Voltage		v/Ah	48/440
			Battery Weight		kg	760
	Motor		Drive motor	Model		MT708B
				Rated power	kw/rpm	8/1600
			Lifting Motor	Model		MT719B
				Rated power	kw/rpm	10/2450
	Controller				J	Italian SME AC controller
