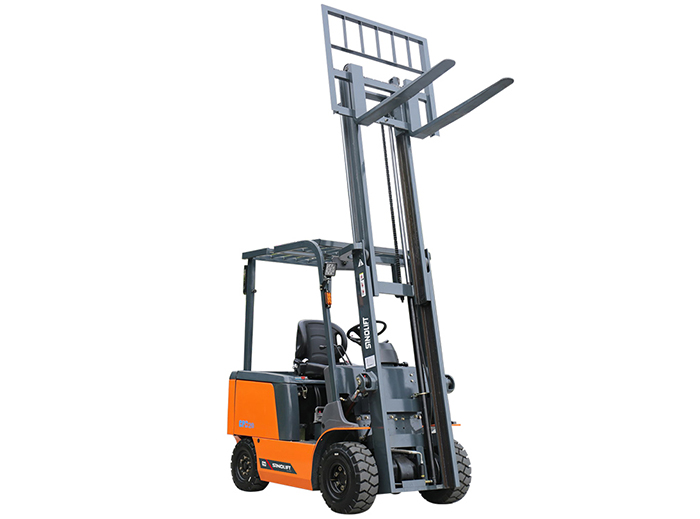

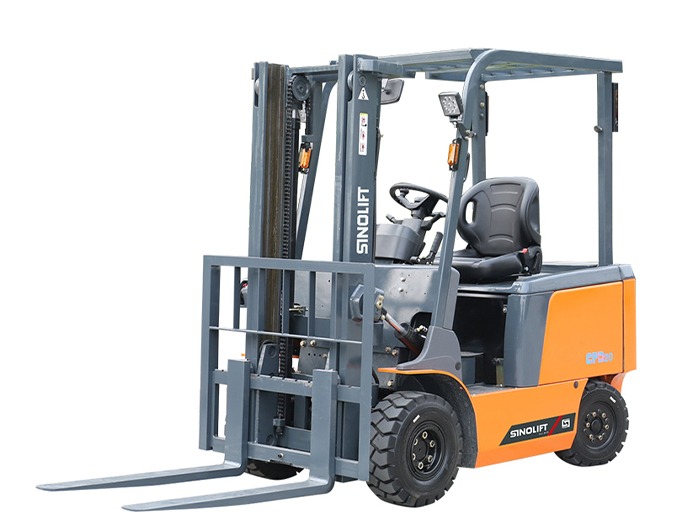

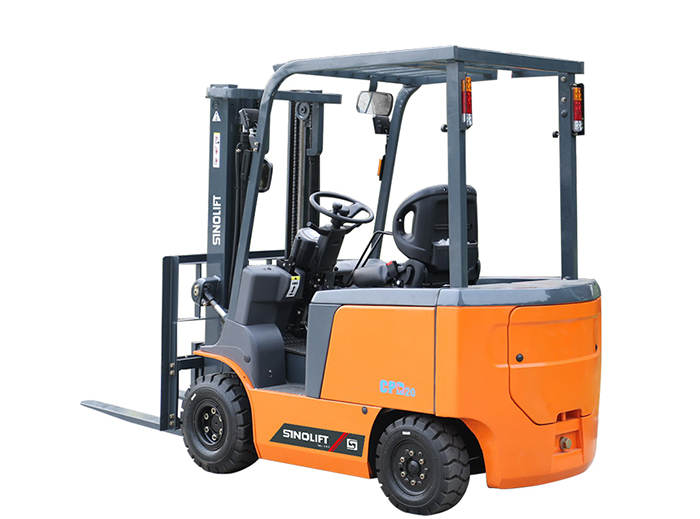

Name：2.0 Ton Electric Forklift Truck (CPD20E)
Model：CPD20E
Product Introduction：The CPD20E can work in the narrow passage as compact appearance and small turning radius. The main electrical components are famous brand products, stable performance. According to the principle of ergonomics, the operator's operating space is reasonably allocated to make it comfortable and convenient.

Main Features

1. Driver could easy to read and understand it according to the right instrument panel with clear meter display.
2. Equipped with original imported American Curtis electric control system. The controller is directly fixed in the balanced weight to lead better heat dissipation.
3. Redesigned hydraulic control levers positioned next to seat to make operators feel comfortable.
4. The standard LED lamps and warning lights make it safer, more energy efficient and create better working condition.

Identification	1.1	Manufacture's type designation	SINOLIFT
	1.2	Model	CPD20E
	1.3	Power Type			Electric
	1.4	Type of operation			Seated
	1.5	Load capacity t/ratedload	Q	k	2000
	1.6	Load center distance		mm	500
	1.7	Load distance,center of drive axle to fork	L2	mm	430
	1.8	Whee base	L1	mm	1400
Weight	2.1	Weight(with battery)		kg	3480
	2.2	Front axle rated load laden		kg	4822 5
	2.3	Rear-axle rated load laden		kg	658
	2.4	Front: axlie rated load unladen		kg	1462
	2.5	Rea axle rated load unladen		kg	2018
Dimension	3.1	Mast/fork carriage tilt forward-backward	a/		6/8
	3.2	Mast lowered height	H1	mm	2120
	3.3	free lift height	H3	mm	/
	3.4	Standard mast lifting height	H	mm	3000
	3.5	Extended mast height	H2	mm	3995
	3.6	Overhead load guard height	H4	mm	2180
	3.7	Seat height		mm	1180
	3.8	Coupling height		mm	425
	3.9	Dealllength (with fork)	L	mm	3280
	3.1	Overall length (without fork	L	mm	2210
	3.11	Overall width	W1	mm	1070
	3.12	Fork Dimension	TxWxL4	mm	40/122/1070
	3.13	Type fork carriage, B			1S02328 2A
	3.14	Fork carriage width		mm	1038
	3.15	Fork carriage spread width	W5	mm	250-990
	3.16	Ground clearance under mast laden	H5	mm	120
	3.17	Ground clearance at the center of the wheelbase	H6	mm	130
	3.18	Aisle width for length way pallet size 1000x 1000	Ast	mm	3640
	3.19	Aisle wdth for length way pallet size 1200 1200	Ast	mm	3840
	3.2	Turning radius	r	mm	2010
Tyre/Chasss	4.1	TrueType			Solid rubber wheel
	4.2	Tyre Size(Front)			6.50-10
	4.3	resize(Rear			5.00-8
	4.4	wheels Quantity, front/rear px=drving wheels)			2/2
	4.5	Frontwheespan		mm	890
	4.6	Rear wheelspin		mm	920
Performance	5.1	Traveling Speed(laden/unladen)		km/h	12/14
	5.2	ifting Speed(aden/unladen)		mm/s	280/320
	5.3	Lowering Spee aden/unladen)		mm/s	460/430
	5.4	Max.GradientPerformance 5min (adenunladen)		%	12/15
	5.5	Service Brake Type			Hydraulic
	5.6	Parking Brakeiype			Mechanical
Power Unit	6.1	Drive Motor Rating(AC) S2 -60min		kW	8
	6.2	ui Motor Rating0C)S3-15%		kW	12
	6.3	Battery Voltage/CapacityK5		V/Ah	48/450
	6.4	Battery Weight		kg	700
	6.5	M ax Alowabi e battery size		mm	977x660x435
Others	7.1	Controller Brand			SME
	7.2	Controller Model			500A
	7.3	Operating pressure for attachment		bar	140
	7.4	Oi volume for attachments		4/min	65
	7.5	Hydrauic oi tank volume		L	33
	7.6	Sound Level at driver's ear according to EN 12053		dB	72
