EPT15E Li-Ion Battery 1.6 ton Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

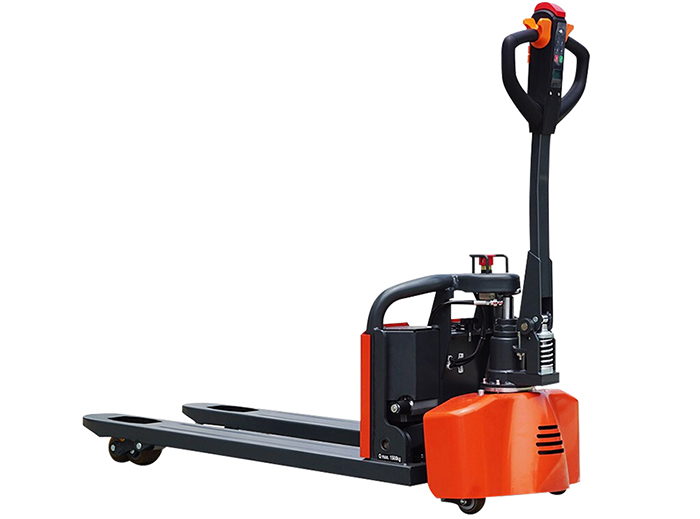

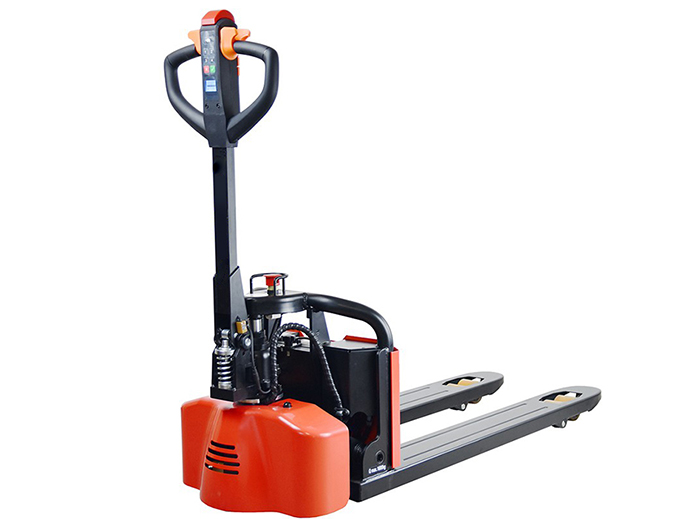

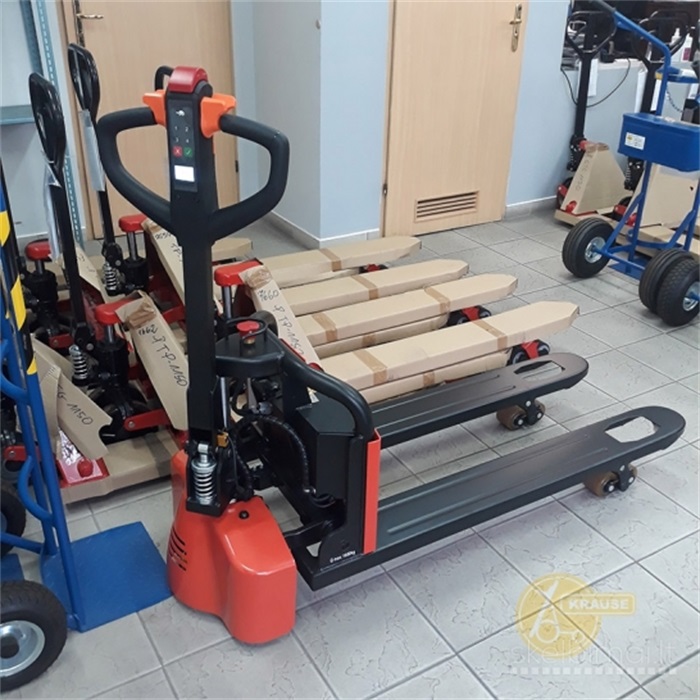

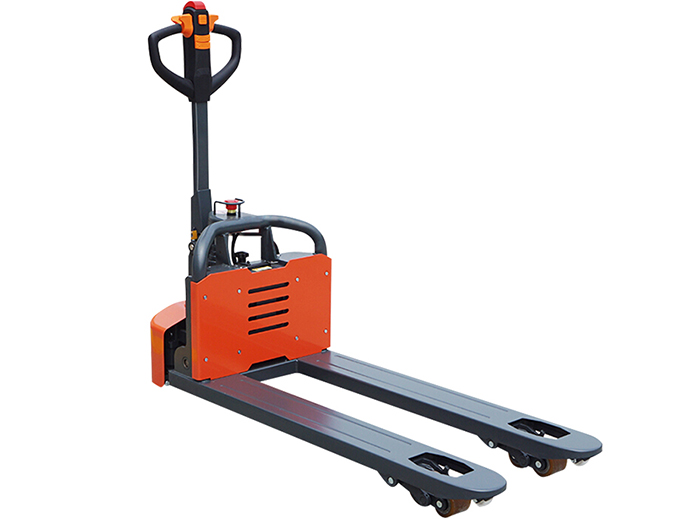

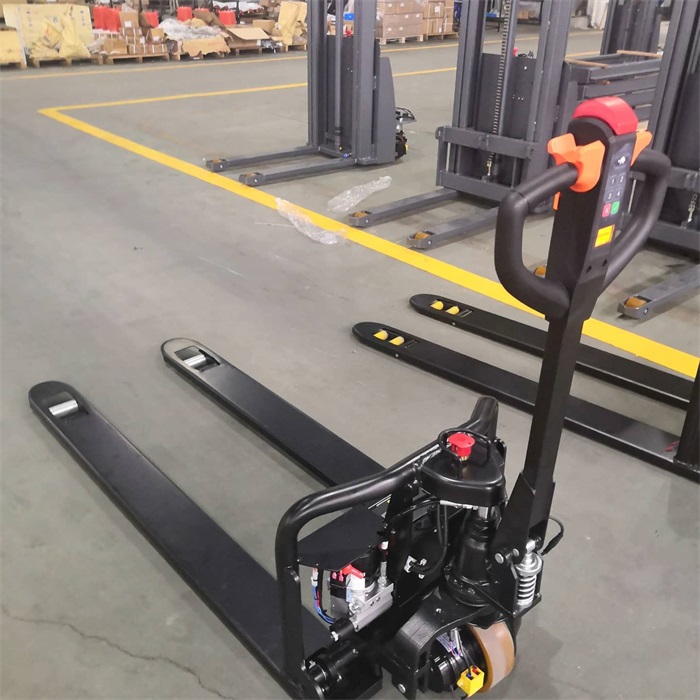

Name：EPT15E Li-Ion Battery 1.6 ton Pallet Truck
Model：EPT15E
Product Introduction：SINOLIFT is setting new benchmarks in pallet truck productivity and efficiency with the EPT15E: No need for a hand pallet truck anymore – with a lifting capacity of up to 1,600 kg, heavy loads can be transported fatigue-free with the EPT15E. Electric lifting and driving noticeably relieves stress on the operator, just as the ergonomic design of the tiller head enables a natural hand position during operation. The compact low lift pallet truck is powered by innovative Li-Ion technology, which is particularly maintenance free and reliable. The Li-Ion battery is very easy to change and can be easily inserted into the forklift truck for ultimate availability.

Features:

1. High strength polyurethane wheel, wear-resistant

2. Standard balance wheel, more stable and reliable body

3. The vehicle is durable without plastic coating

4. With large capacity and long service time, a battery can be continuously handled for 3-4 hours under normal actual use conditions.

5. Intelligent handle with ergonomic design, smooth operation and flexible steering

6. Imported, Bucher power unit, high efficiency and stability

MODEL		EPT15E
Driving Type		Electric
Operation Type		Walking
Load Capacity	kg	1600
Load Center	mm	600
Max. Fork Height	mm	190
Min. Fork Height	mm	85
Fork Length	mm	1150
Frame height	mm	560
Drive Wheel Size	mm	∮210*70
Front Wheel Size	mm	∮80*70
Wheel Material		Pu iron clad core
Single Fork Width	mm	160
Turning Radius	mm	1350
Center Distance Between Front and Rear wheels	mm	1220
Driving Motor	kw	0.75
Lifting Motor	kw	0.5
Battery	v / Ah	24/20
Travel Speed, Full load / No load	km/h	4.5
Max. Gradient, Full load / No load	%	3/5
Overall Length	mm	1540
Overall Width	mm	560/680
Overall Height	mm	1220
Net Weight(including battery)	kg	160
