Home >> Products >> EPT20-30ET 3ton Full Electric Pallet Truck

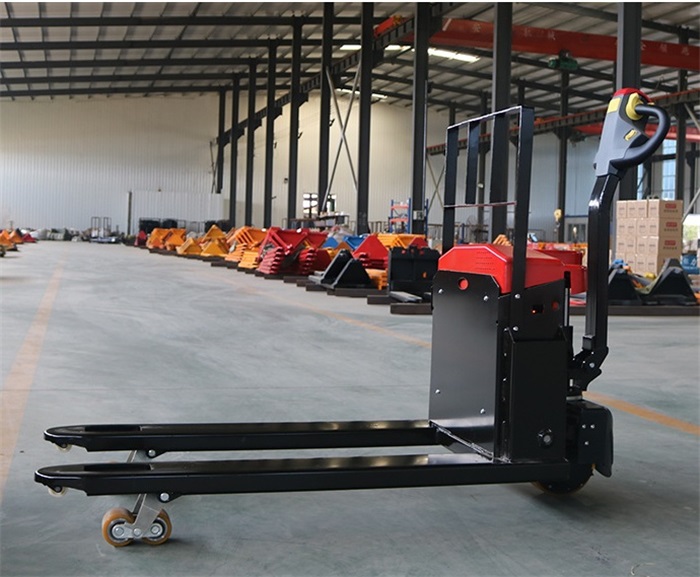

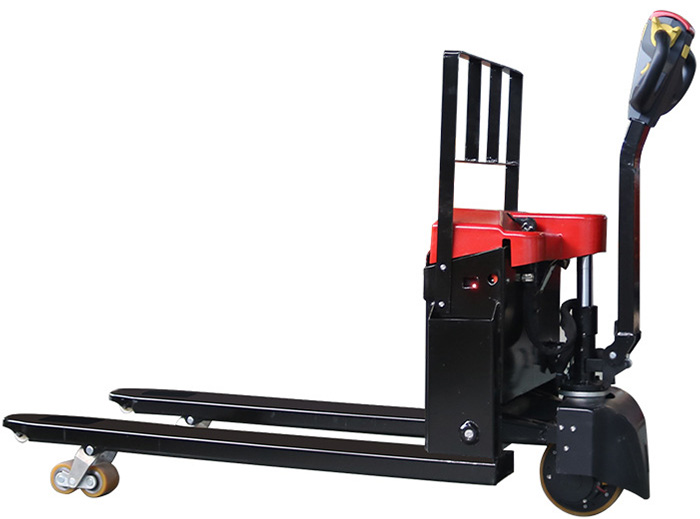

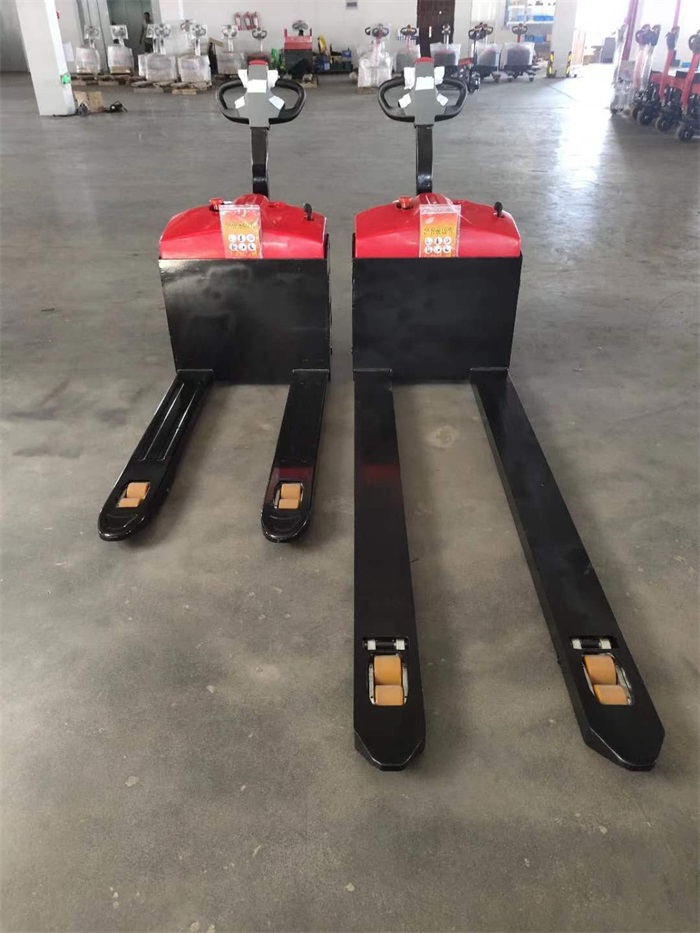

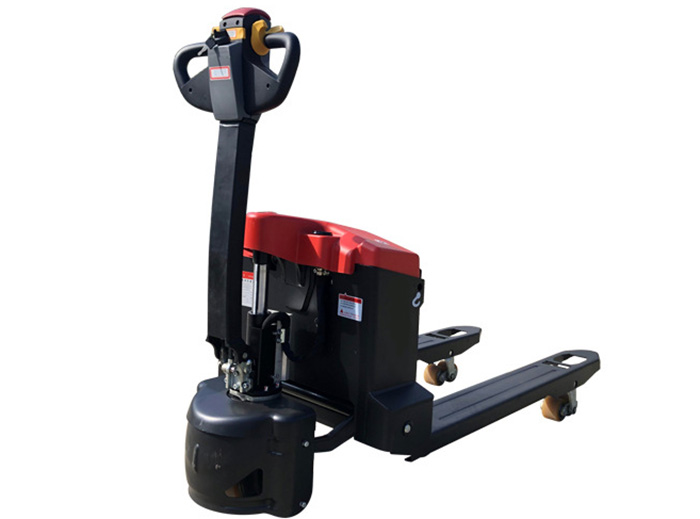

Name：EPT20-30ET 3ton Full Electric Pallet Truck
Model：EPT20-30ET
Product Introduction：The EPT20-30ET Truck, electric pallet jack has a 3,000 kg capacity and is fully electric reducing operator strain and greater productivity. The electric pallet jack has a 5 hour run-time per charge and has a rechargeable battery pack with a 24v charger. The ergonomic handle has a horn, reverse switch, and thumb control for accurate operation.

Long tiller & low mounting
A long tiller arm with a low mounting point ensures a large safety clearance between operator and chassis, as well as providing light steering for sharp corners.

Robust construction
Our heavy duty construction utilizes thick plastic and a metal top cover, ensuring minimal damage, thus lowering lifetime costs. This low total cost of ownership makes our warehouse range perfect for even the toughest applications.

Characteristics
Manufacturer		SINOLIFT
Model designation		EPT20-30ET
Drive Unit		Battery
Operator Type		pedestrian
Load capacity	Q (kg)	3000
Load center	c (mm)	600
Load distance	x	877/940
Wheelbase	y	1206/1264
Weight
Service weight (Incl. battery)	kg	1400
Axle loading, laden driving side/loading side	kg	2235/1165
Axle loading, unladen driving side/loading side	kg	263/137
Wheels,Chassis
Tyre type, operator side/ load side		PU/PU
Tyre size,driving wheels (Diameter x width)	mm	Ф250x80
Tyre size,loading wheels (diameter x width)	mm	4 X Ф85x65
Tyre size,caster wheels (diameter x width)	mm	//
Wheels, number operator/load side (x=drive wheels)	mm	1 x/4(1x/2)
Track width, front,driving side	b10 (mm)	520
Track width, rear,Ioading size	b11 (mm)	482(597)
Dimensions
Lift height	h3 (mm)	115
Height drawbar in driving postion Min./Max.	h14(mm)	750/1200
Fork height, lowered	h13 (mm)	85
Overall length	11 (mm)	1810
Length to face of forks	12(mm)	590
Overall width	b1/ b2 (mm)	694
Fork dimensions	s/ e/ I (mm)	60/160/1220
Fork spread, min/ max	b5 (mm)	560(685)
Ground cIearance,center of wheelbase	m2(mm)	31
Aisle width, 1000•1200 pallet crossways	Ast (mm)	1840
Aisle width, 800•1200 pallet crossways	Ast (mm)	1950
Outer turning radius	Wa (mm)	1780
Performance
Travel speed, laden/ unladen	km/ h	4/4.5
Lifting speed, laden/ unladen	ml s	0.027/0.038
Lowering speed, laden/ unladen	mlS	0.059/0.039
Maximum gradeability, laden/ unladen S2 5 min.	%	6/10
Service brake		Electromagnetic
Drive
Drive motor rating S2 60 min.	kW	1.5
Lift motor rating at S3 15%	kW	1.5
The maximum allowed size battery	mm	330170215
Battery voltage/ rated capacity (5h)	V/ Ah	2x12/100
Battery weight	kg	2x36
Others
Type of drive control		AC
Steering type		Mechanical
Sound level at operators ear	dB (A)	70
